SHEET METAL

The implementation of CAD in the design stage of sheet metal parts can offer a wide variety of benefits that will lead to increased accuracy, a reduction in cost and greater time efficiency…

- Accurate 3D and 2D models that ensure parts are designed fit for manufacture and production

- Calculating bend allowances to provide accurate flat patterns

- Integrate directly with manufacturing equipment

- Speed up the prototyping process to allow quick and easy design changes without the cost risk of manufacture

- Optimise layout of multiple parts across a sheet to minimise material waste

PRESSED PARTS

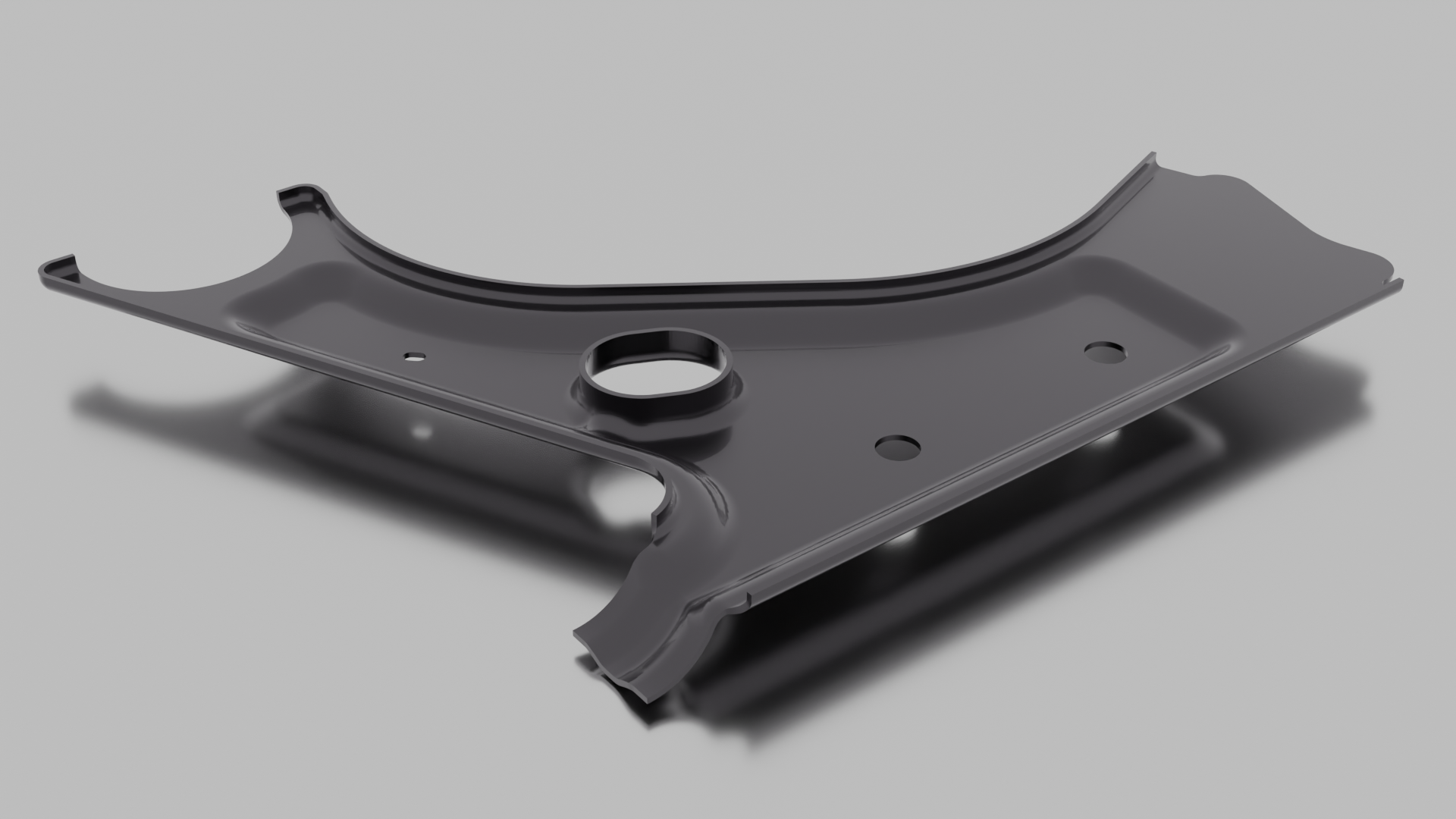

  • Black metal car part with holes and a raised circular section on a gray background.

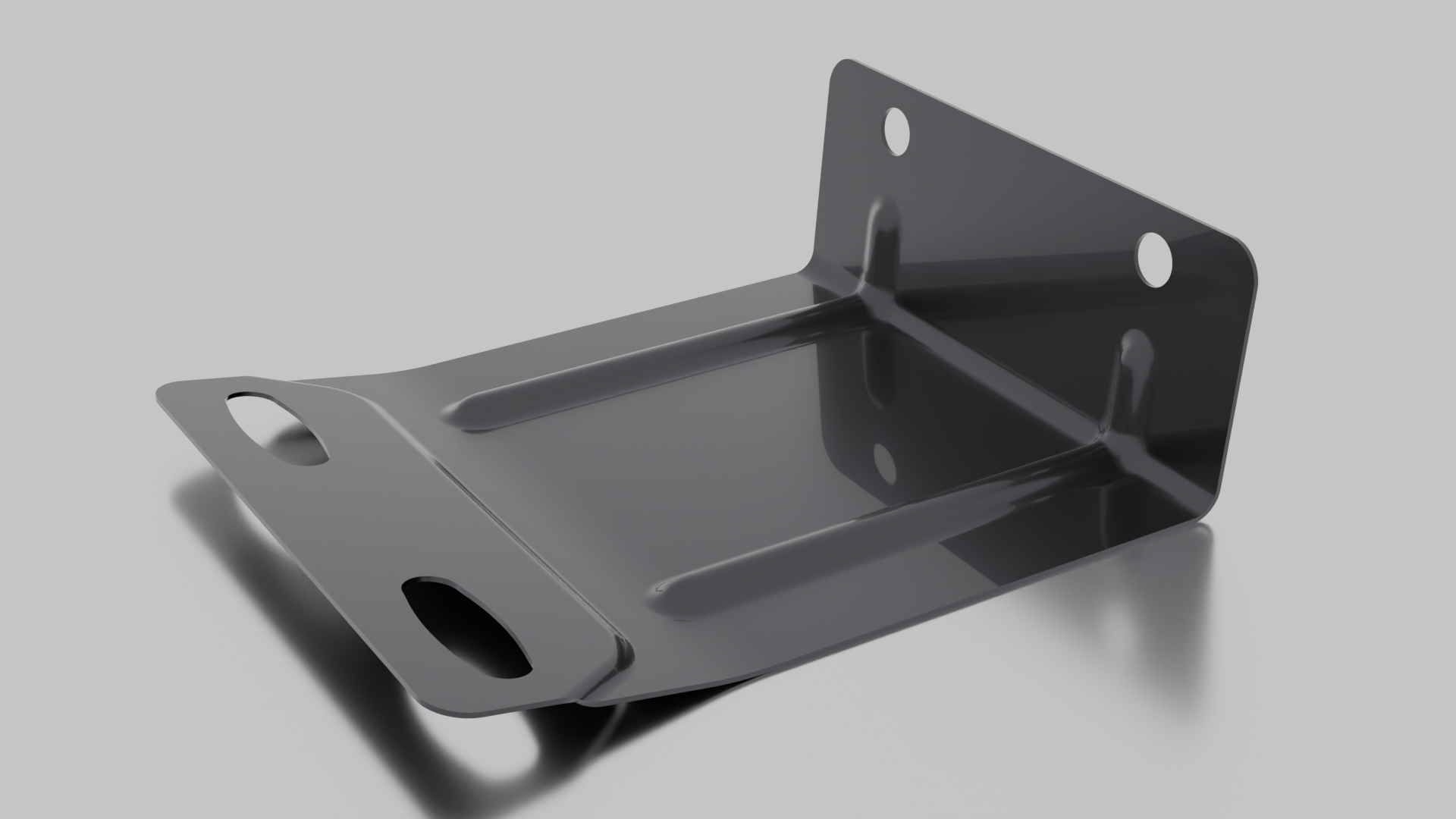

  • Gray metal bracket with multiple holes and support bars, placed on a light gray surface.

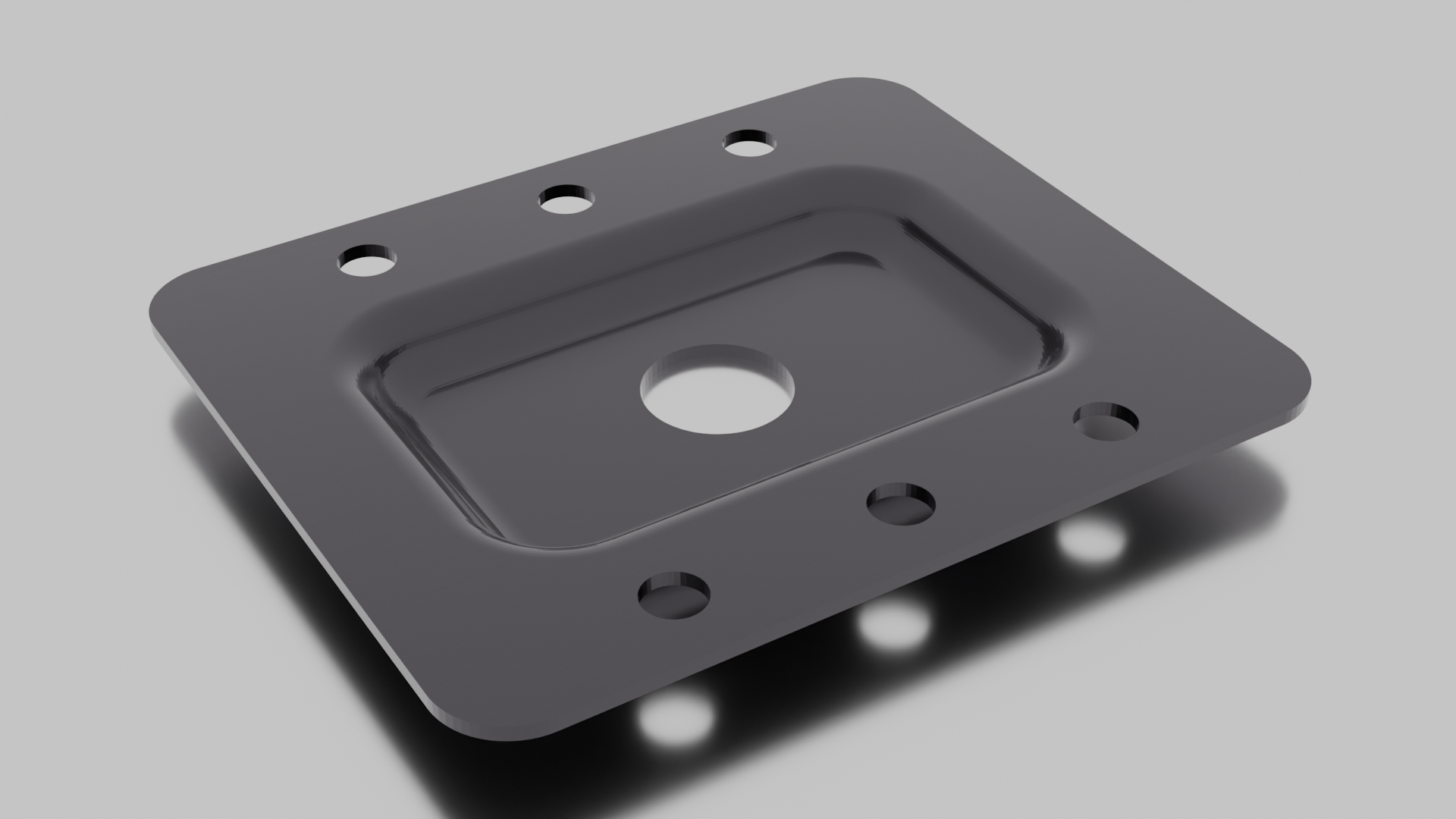

  • A black metal rectangular plate with multiple circular holes, placed on a light gray surface.

FOLDED PARTS

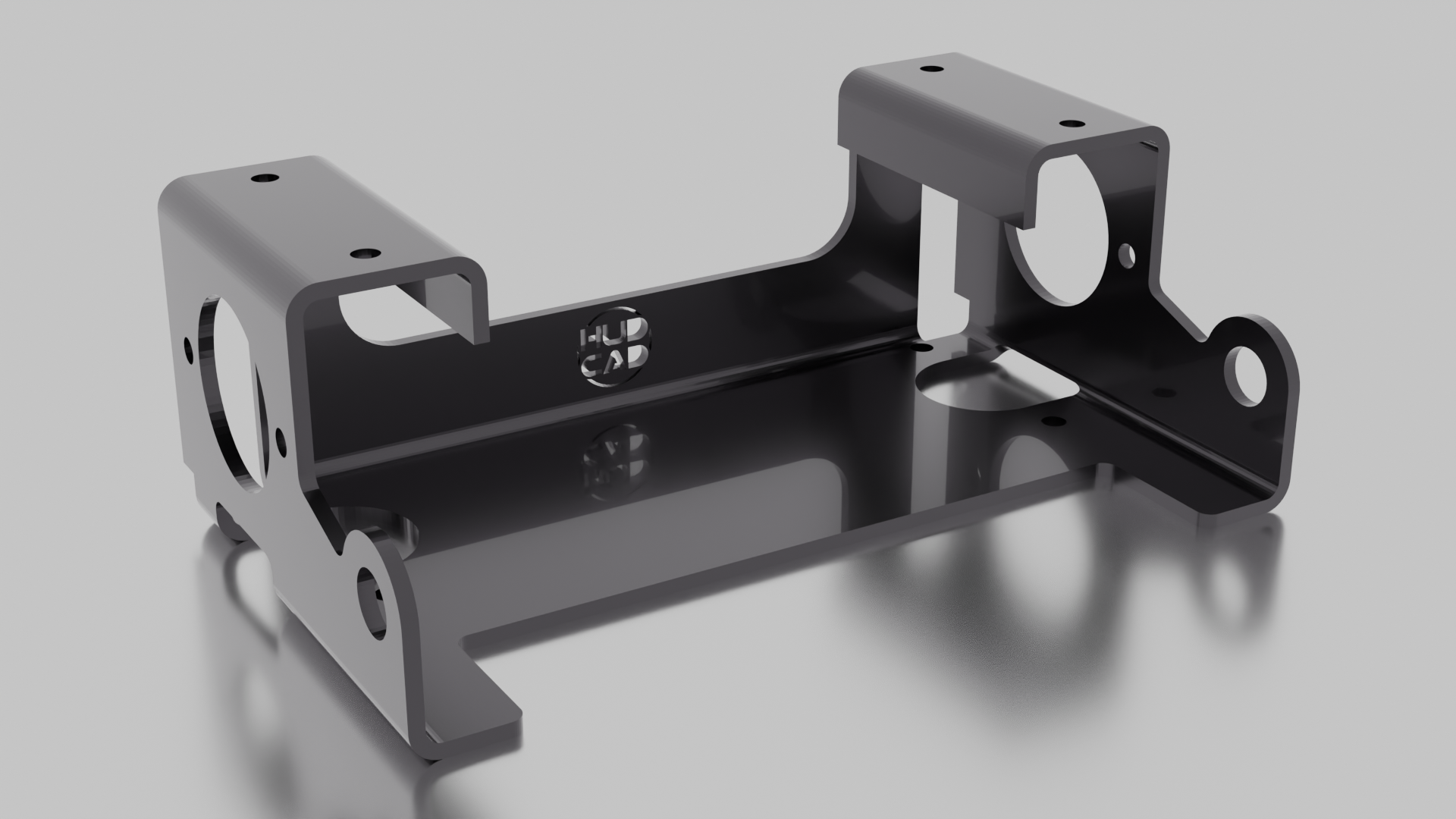

  • Black metal L-shaped bracket with multiple holes and the words HUD CAP cut out on one side.
  • A black metal bracket with multiple holes and cutouts, likely a mounting or support component.

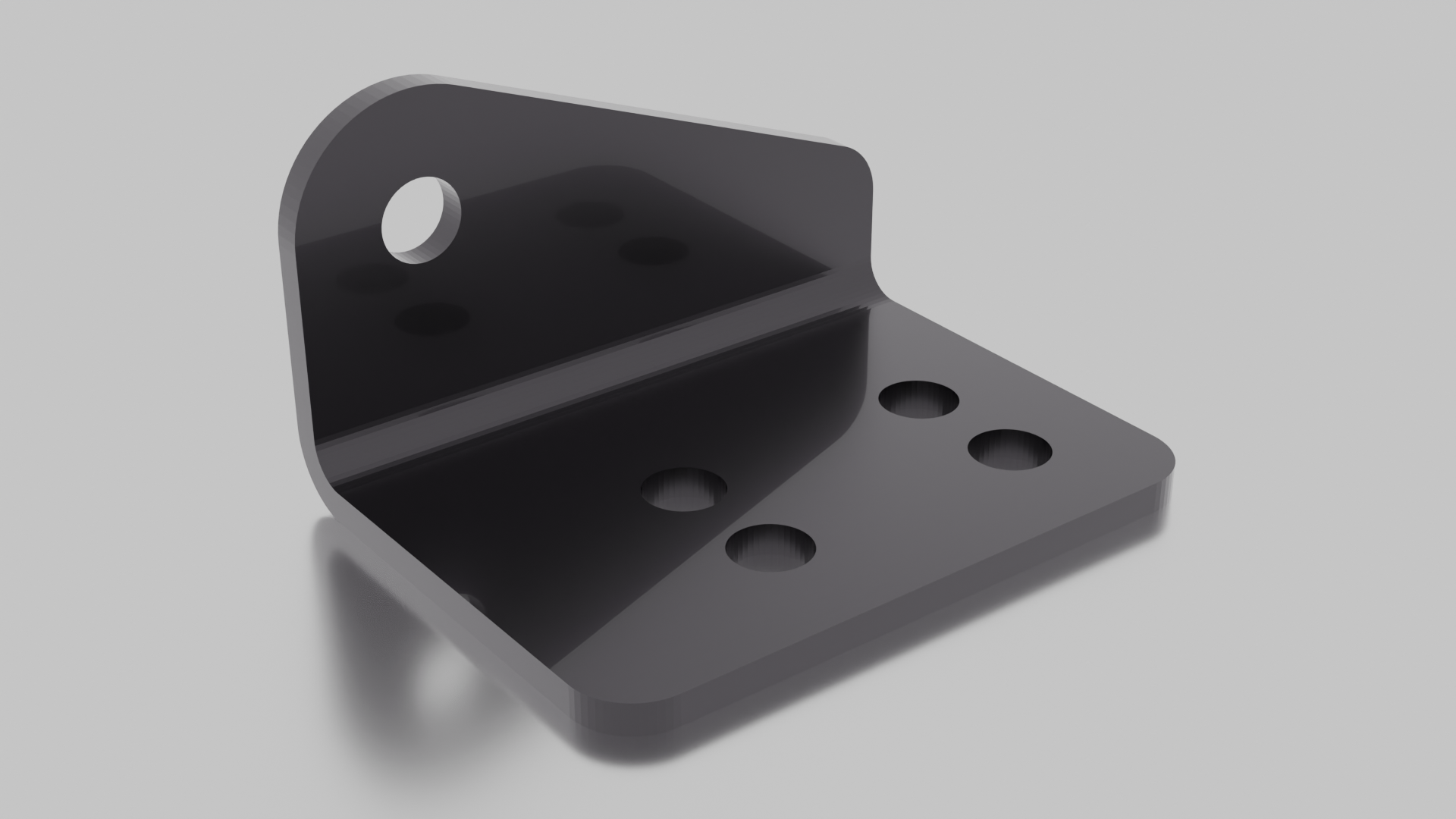

  • A metallic L-shaped bracket with multiple circular holes on a light gray surface.
